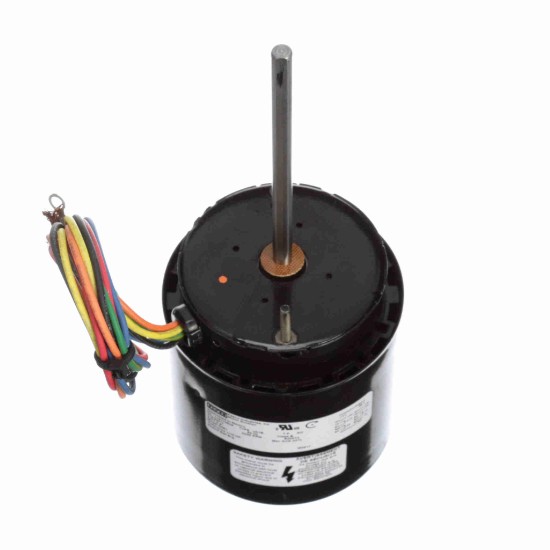

D091 Fasco 1-Phase 1/15 HP 115/230V 3000 RPM TEFC Motor for HVAC/R Ventilation

USD 224.80 USD

SKU: 8lPuDjMk

Brand: Fasco

MPN: D091

GTIN: Does not Apply

Condition: New

Tags: 0.05 kW 0.312 in ( 7.92 mm ) 1 ( Single Phase ) 1 Phase 1 year 1/15 Hp 115/230 V 12.00 lbs ( 5.44 Kg ) 2.1 A 3000 RPM 4.50 in ( 114.3 mm ) 40 °C ( 104 °F ) 5.0 in ( 127.0 mm ) 60 hz 9.55 in ( 242.57 mm ) Across The Line Air Over BALL Clockwise Shaft End D091 Extended Studs Fasco Fasco, Regal Rexnord Flat Motor Shaded Pole Steel Thermally Protected United States

Categories: HVAC & Refrigeration: Parts & Accessories

Specifications

MPN	D091
Brand	Fasco
Compatible Equipment Make	Fasco, Regal Rexnord
Part Type	Motor
Type	Motor
Warranty	1 Year
Power Phase	1 ( Single Phase )
Output HP	1/15 Hp
Output KW	0.05 kW
Voltage	115/230 V
Speed	3000 rpm
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C ( 104 °F )
Frequency	60 Hz
Amperage	2 / 1 A
Duty	Air Over
Electrical Type	Shaded Pole
Starting Method	Across The Line
Rotation	Clockwise Shaft End
Mounting	Extended Studs
Bearing	Ball
Frame Material	Steel
Shaft Type	Flat
Overall Length	9.55 in ( 242.57 mm )
Frame Length	4.50 in ( 114.3 mm )
Shaft Diameter	0.312 in ( 7.92 mm )
Shaft Extension	5.0 in ( 127.0 mm )
Weight	12.00 lbs ( 5.44 Kg )
Country Of Origin	United States

The Fasco D091 Ventilation Motor is a high-performance, totally enclosed fan-cooled (TEFC) motor designed for demanding HVAC-R and ventilation applications. Replaces OEM part number: D091. 1 YR WARRANTY.
